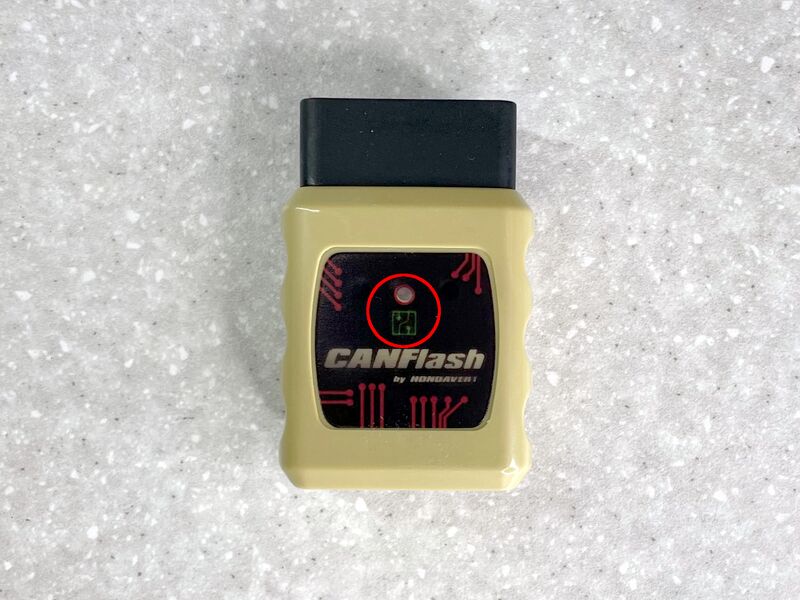

LEDs Meaning for CANFlash rev.1.2
| Color | Type | Meaning |
|---|---|---|
| Yellow | Solid | No ECU Communication Detected (Unit Locked) |
| Magenta | Solid | No ECU Communication Detected (Unit Unlocked) |
| Magenta | Flashing | ECU Communication – Unit Not Locked |
| Red | Flashing | ECU Communication – Logging or Flashing |
| Yellow/Green | Solid | During The Flash Process This Means Erasing The ECU |
| Yellow/Green | Blinking | At The End Of A Flash Attempt This Indicates It’s Waiting For Key Off |
| Light Green | Solid | ECU In Recovery Mode |
| Light Green | Blinking | At The End Of A Flash Attempt This Indicates It’s Waiting For Key On |
| White | Blinking | On Board Logging Is Recording |
| Blue | Solid | Unit Recovery Mode Or Updating Firmware |
| Green | Solid | SD Card Communication Issue |

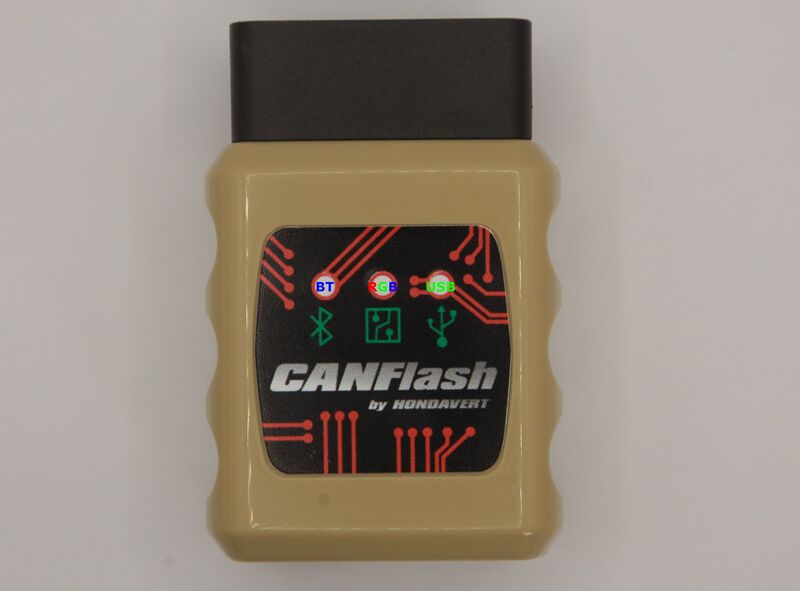

LEDs Meaning for CANFlash rev.1.0
| Color | Type | Meaning |
|---|---|---|
| Yellow | Solid | No ECU Communication Detected (Unit Locked) |
| Blue/Green | Solid | No ECU Communication Detected (Unit Unlocked) |
| Blue/Green | Flashing | ECU Communication – Unit Not Locked |
| Green | Flashing | ECU Communication – Logging or Flashing |
| Orange | Solid | During The Flash Process This Means Erasing The ECU |
| Orange | Blinking | At The End Of A Flash Attempt This Indicates It’s Waiting For Key Off |
| Dark Orange | Solid | ECU In Recovery Mode |
| Dark Orange | Blinking | At The End Of A Flash Attempt This Indicates It’s Waiting For Key On |
| White | Blinking | On Board Logging Is Recording |
| Blue | Solid | Unit Recovery Mode Or Updating Firmware |
| Red | Solid | SD Card Communication Issue |
| BT | USB | Meaning |
|---|---|---|
| On | - | Bluetooth connection active |
| - | On | USB connected to device (drivers installed) |
