Hardware Installation Guide
Do not attempt to solder the ECU yourself unless you are a qualified and experienced technician.
For professional assistance, please contact us. By attempting to modify the ECU, you assume full responsibility for any damage caused to the vehicle.
For professional assistance, please contact us. By attempting to modify the ECU, you assume full responsibility for any damage caused to the vehicle.

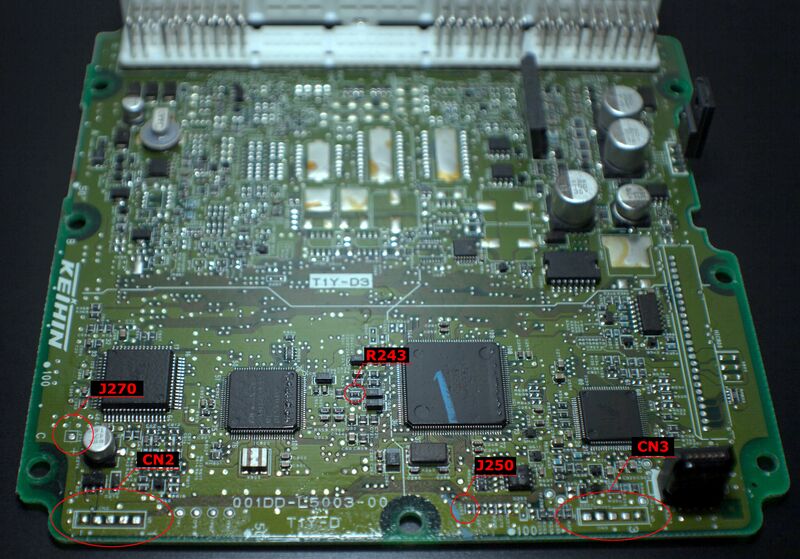

Five components must be modified: CN2, CN3, J270, J250, R243

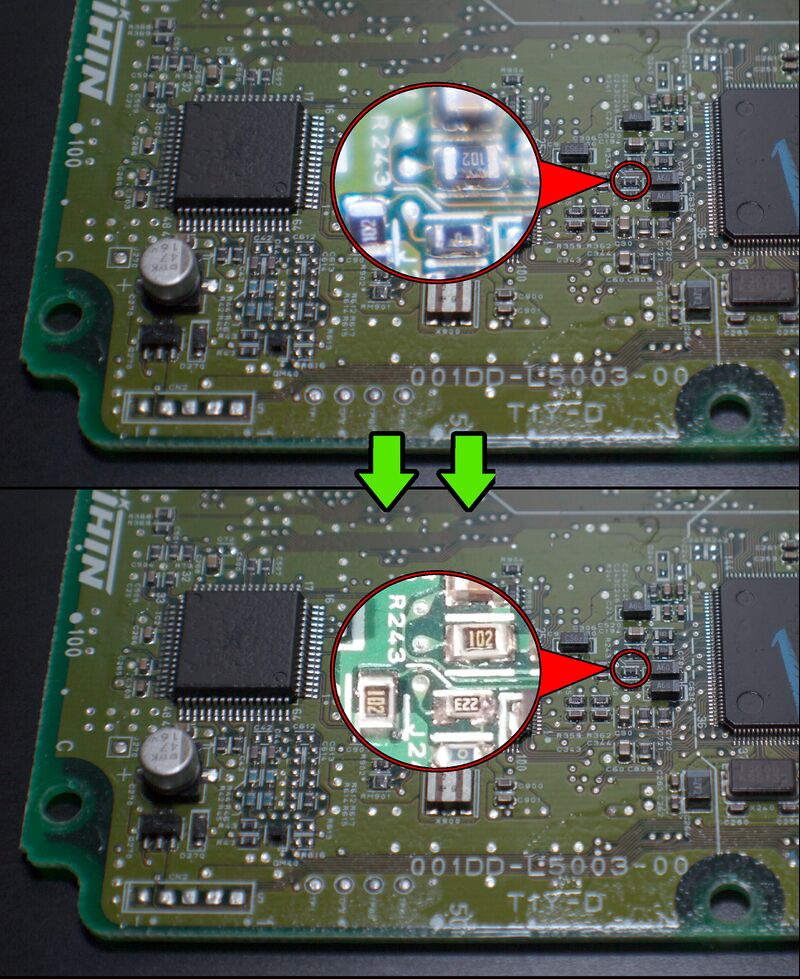

Install 22kΩ resistor in place of R243 jumper.

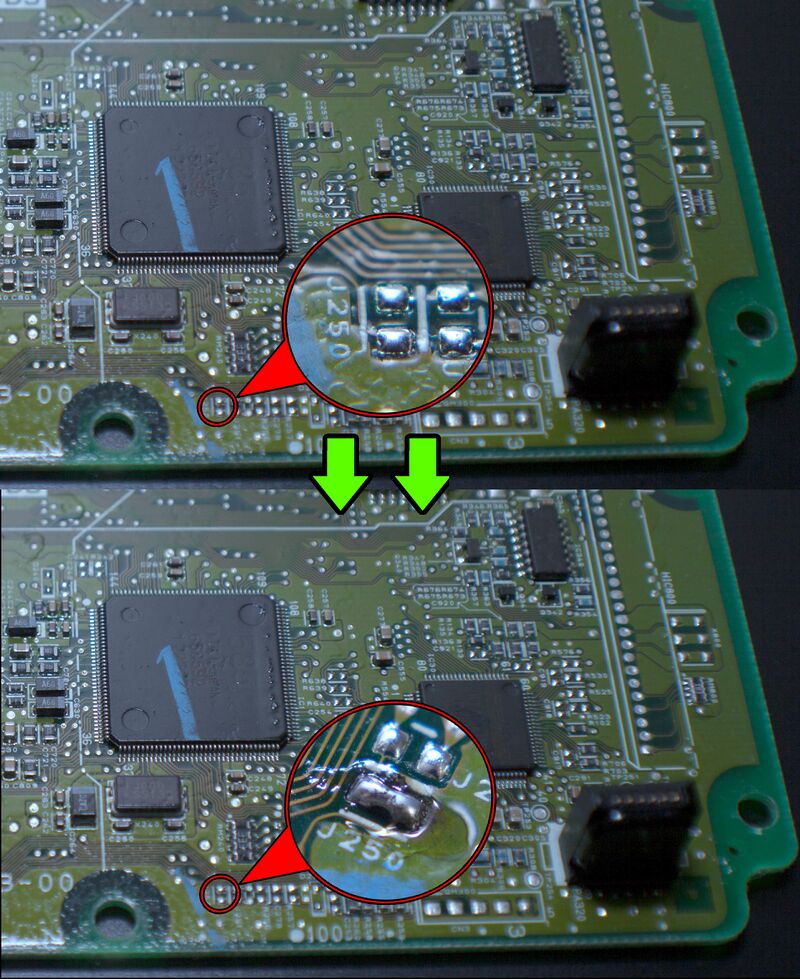

Bridge J250 with solder.

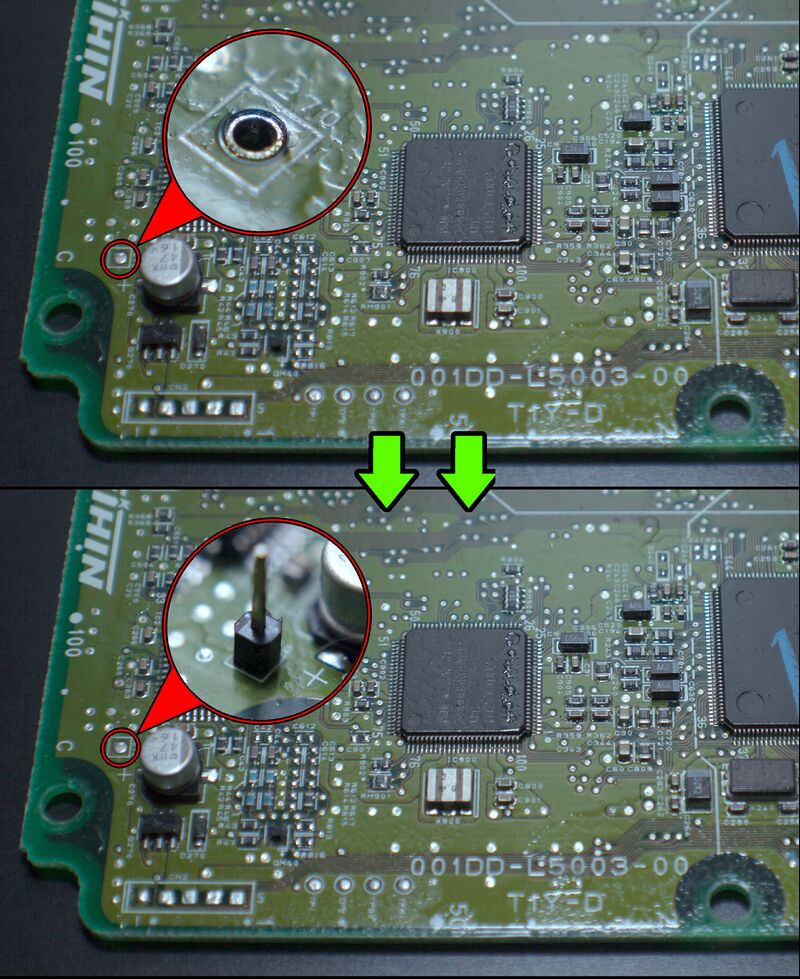

Solder 1-pin connector at the J270 location.

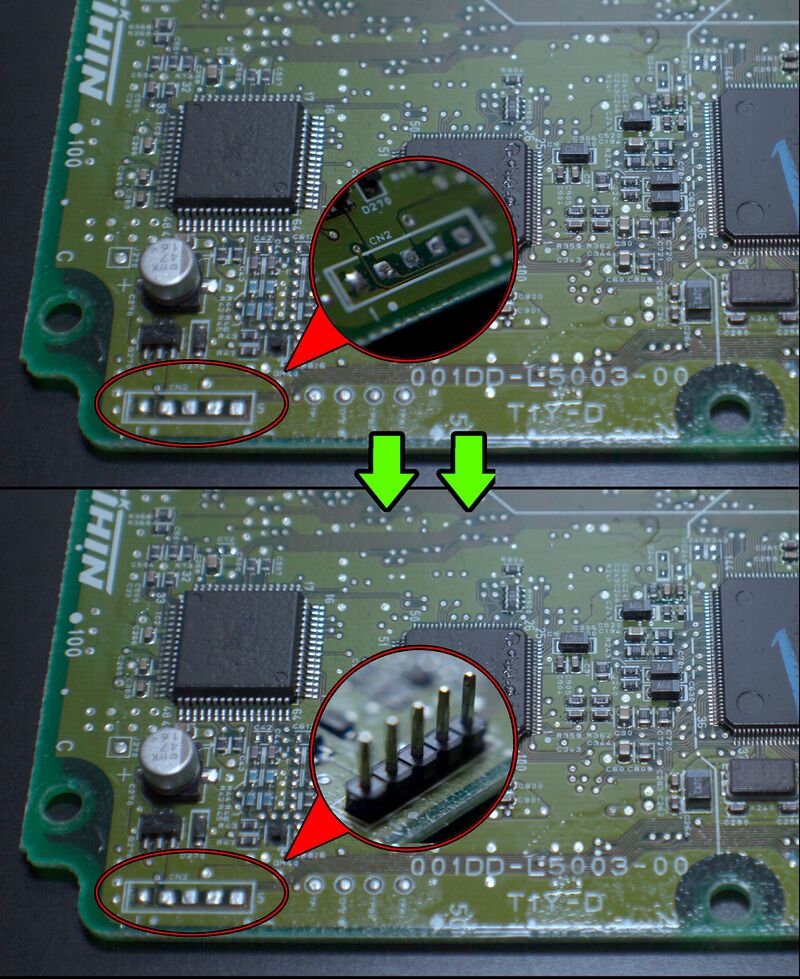

Solder 5-pin connector at the CN2 location.

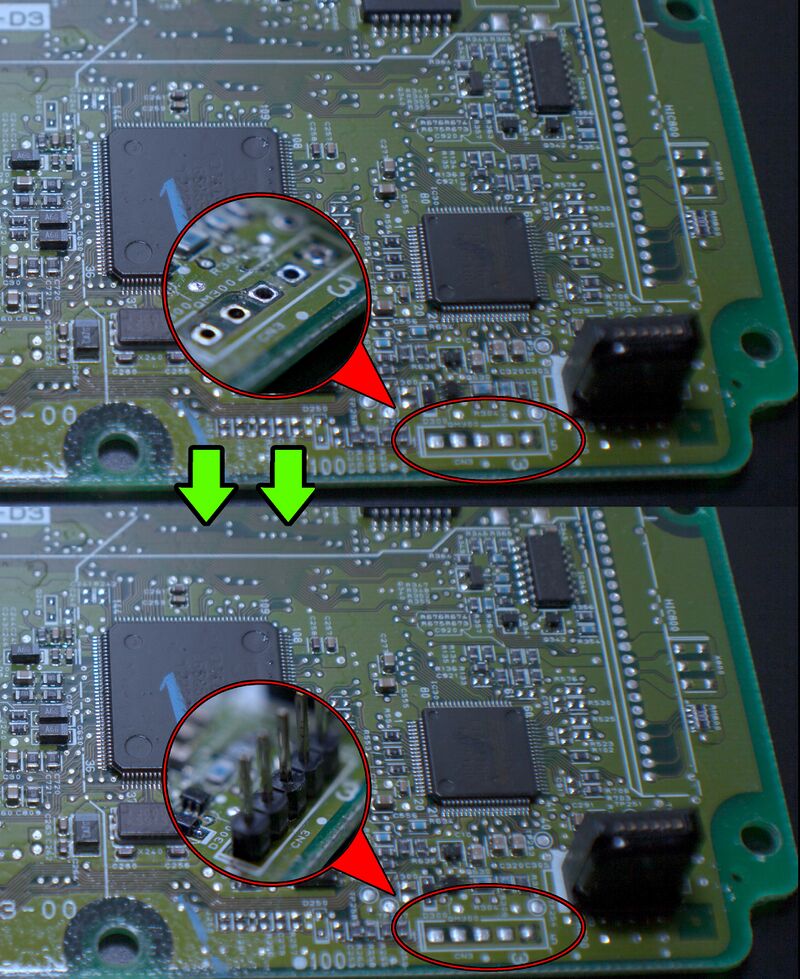

Solder 5-pin connector at the CN3 location.

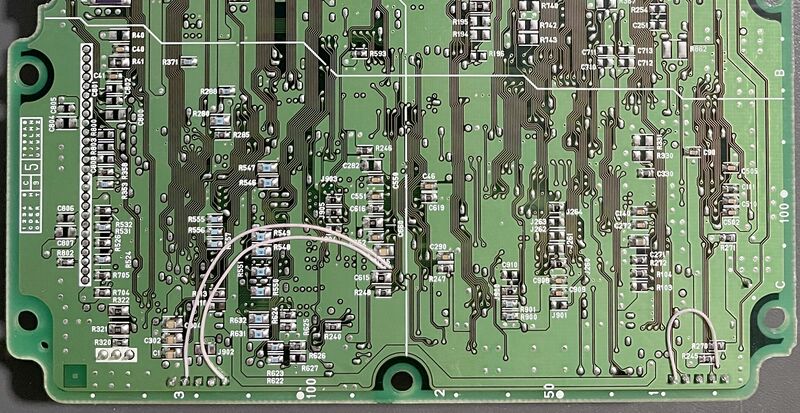

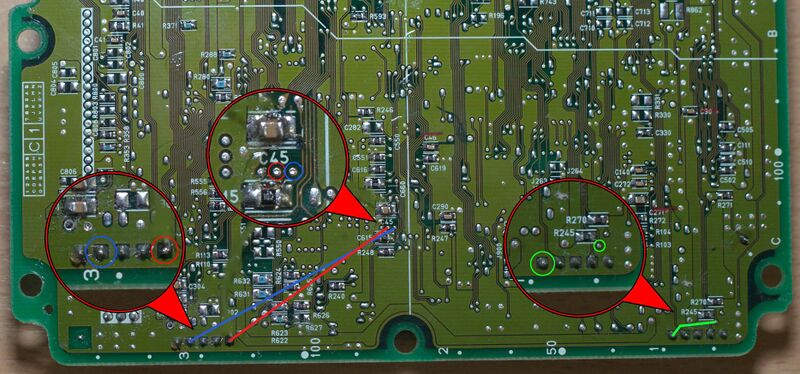

Solder 3 jumper wires between the points shown in the picture.
Wire Soldering Example

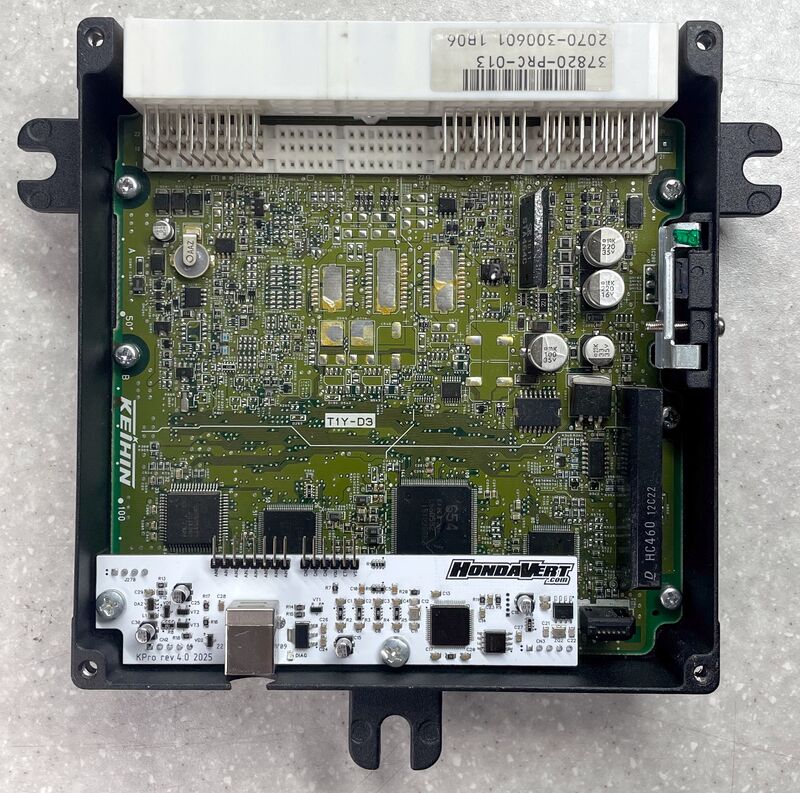

Drill hole for USB. Install KPro board with supplied screws.
First Upload

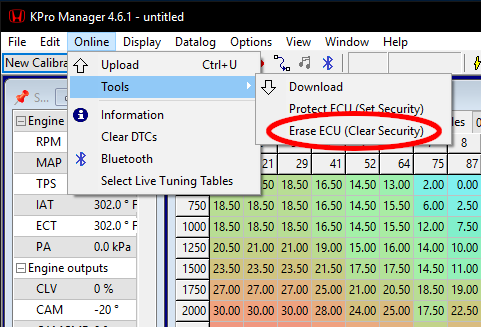

In KPro Manager, go to the Online menu and select Erase ECU (Clear Security) before you can upload to ECU.
