Hardware Installation Guide
Avoid getting soldering flux on ECU connectors CN101 and CN4 — when heated, it can form a film that breaks contact and prevents ECU connection.
If connecting or programming errors occur after installation, inspect the solder joints and clean the contacts with a paper knife.
If connecting or programming errors occur after installation, inspect the solder joints and clean the contacts with a paper knife.

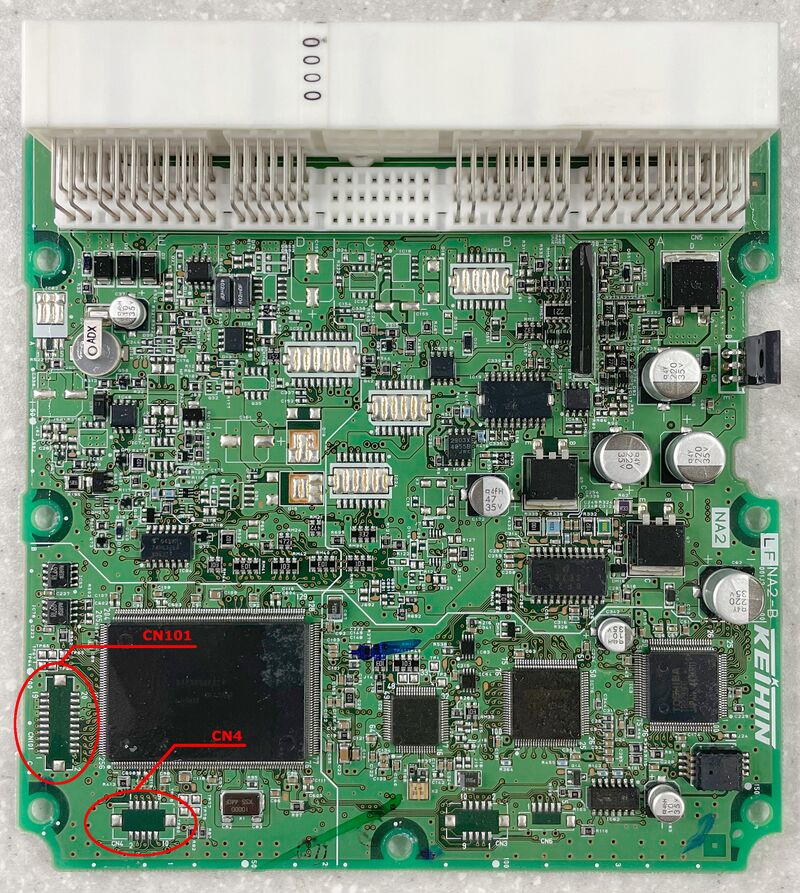

Two components must be modified: CN4, CN101.

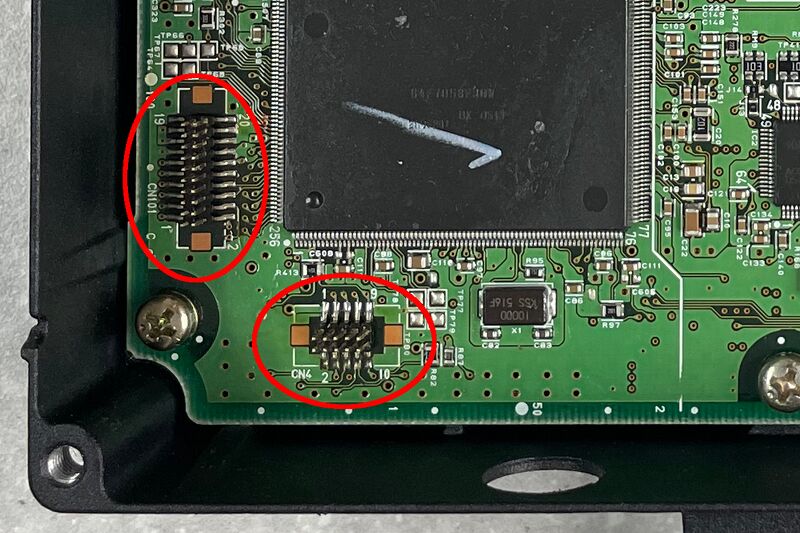

Solder CN101 and CN4 connectors from kit to ECU.

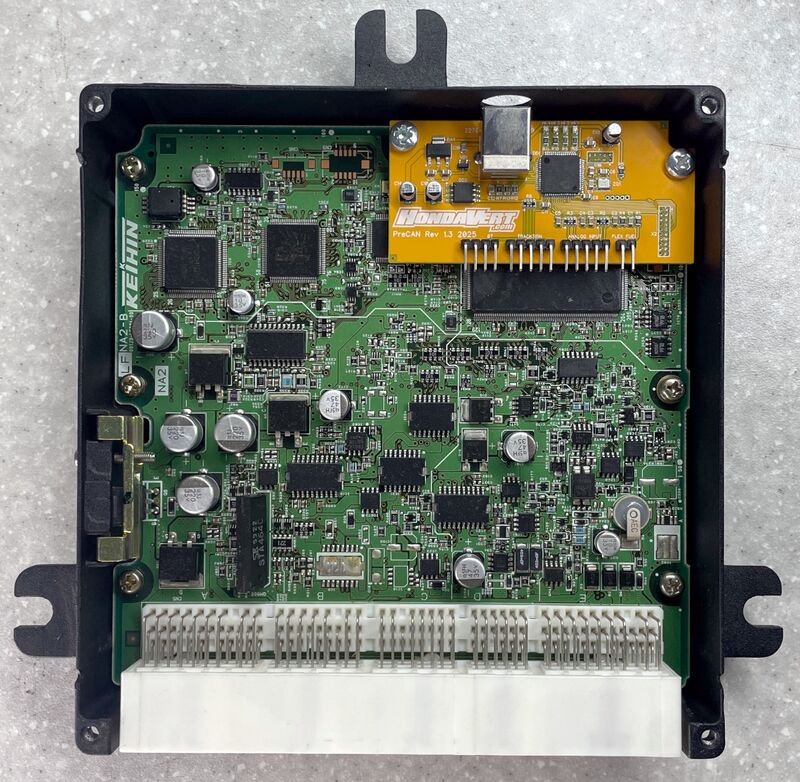

Drill hole for USB. Install PreCAN board with supplied screws.
