General

PreCAN-compatible ECUs support multiple types of throttle bodies.

• DBC. Cable-driven throttle with TPS and IACV mounted on the throttle body.
• DBW. Electronic throttle (Drive by Wire), controlled via Accelerator Pedal Position (APP) sensor.

Cable Throttle Setup

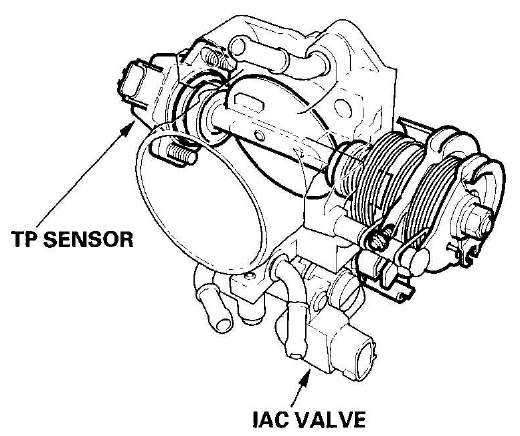

Components Location

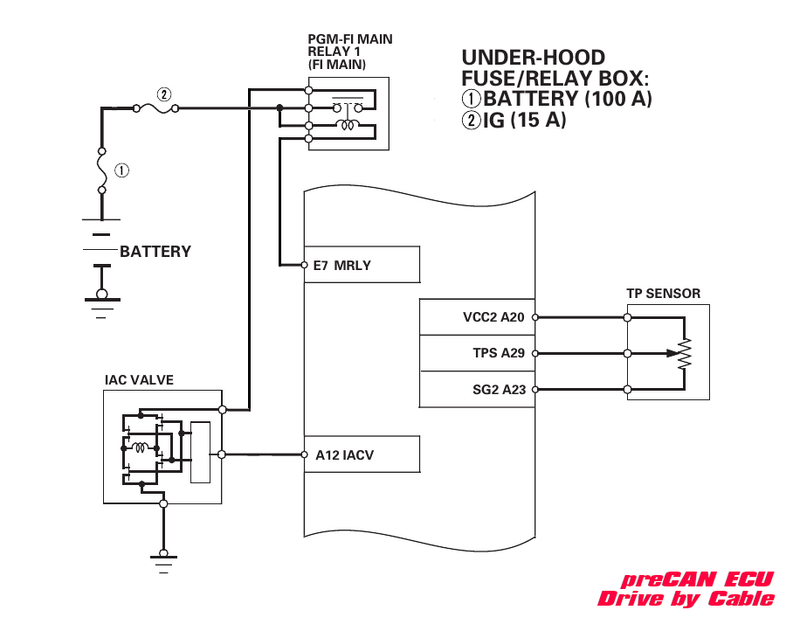

Wiring Diagram

Drive by Wire Setup

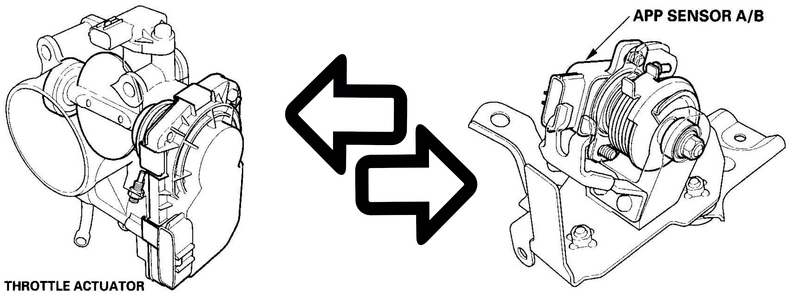

Components Location

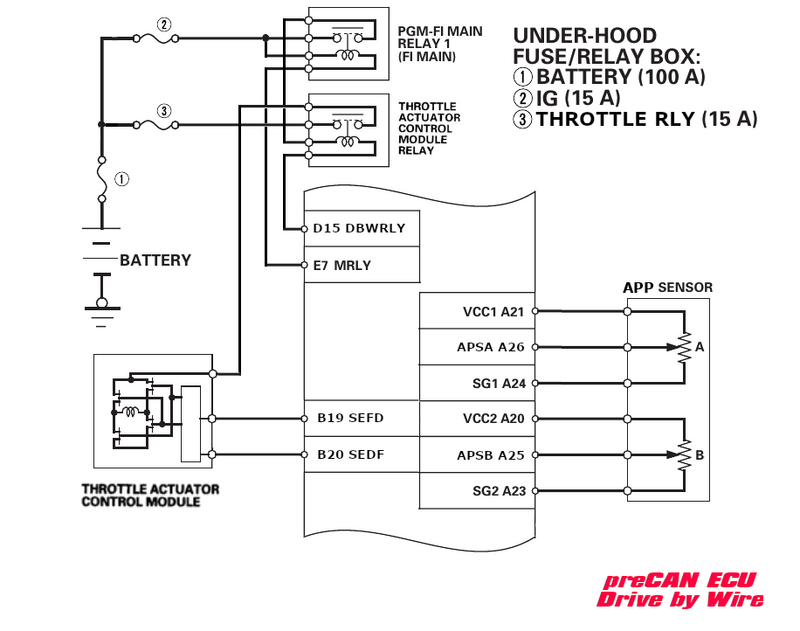

Wiring Diagram

Use DBW in Your K-Swap

For K-swap with DBW into a cable-throttle chassis, get two DBW modules from Accord or CR-V.

• APP Sensor. P/N: 37971-RBB-003
• DBW Control Unit. P/N: 37850-PPD-911

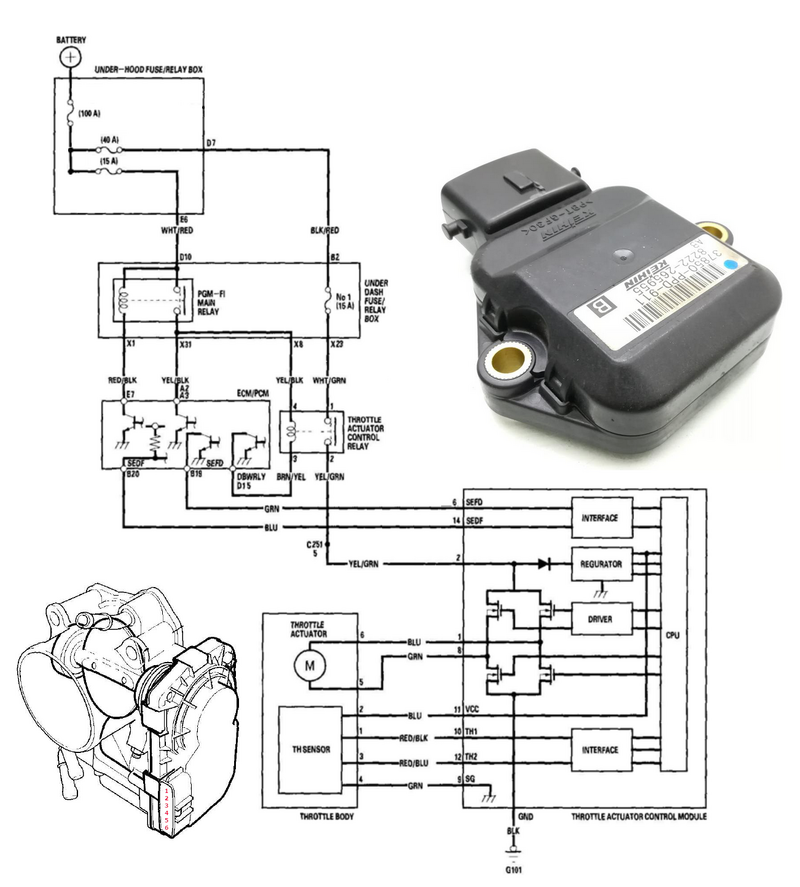

Wiring Diagram

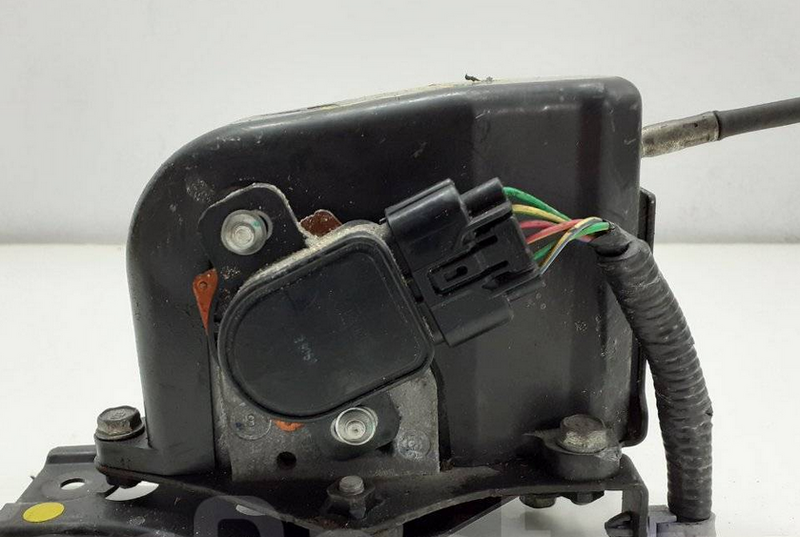

APP Sensor. P/N: 37971-RBB-003

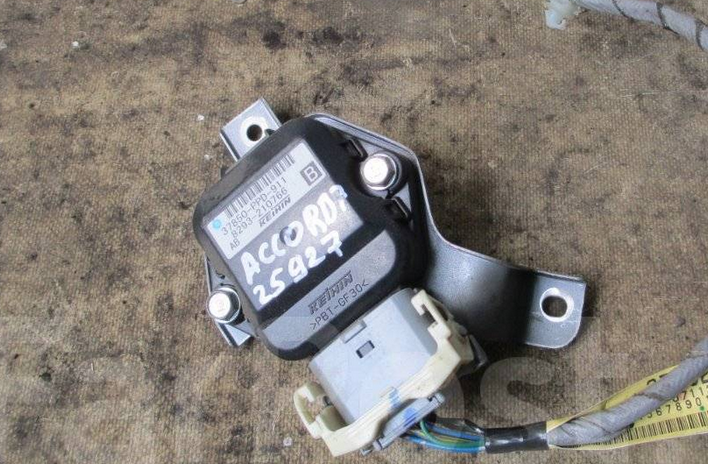

DBW Control Unit. P/N: 37850-PPD-911
